Products ART.2013

ART.2013

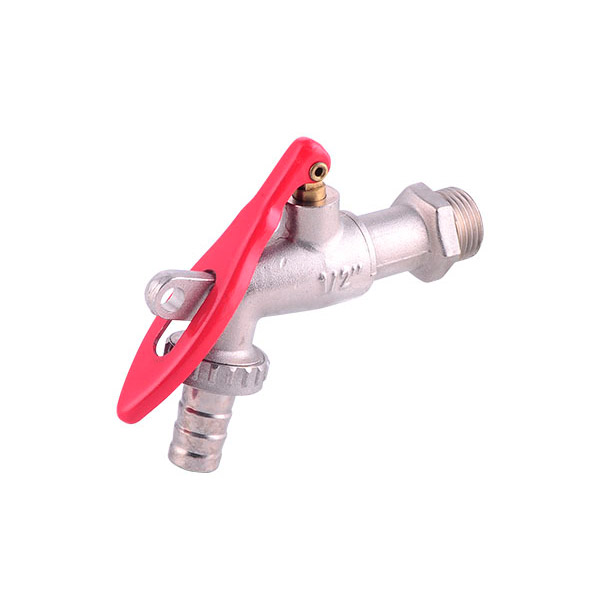

Product type：BRASS BALL LOCKBLE BIBCOCK WITH HOSE UNION
Thread：MM ISO228/1
Temperature：min -10°C max +100°C
Nominal pressure：Max 16bar
Available in：1/2″x3/4″

Description

NO Component Material
1 body brass
2 Seat PTFE
3 Ball Brass
4 Body end brass
5 Stem brass
6 O-ring NBR
7 handle Steel
8 Pin brass
9 Ring brass
10 Rubber gasket NBR
11 water bifurcation Plastic
12 Hose union stainless steel
DN 1/2″x3/4″
A 10
B 89
D 52
E 82.5
M 11.5
PN 16
Piece/box 7
Piece/carton 84
Carton/pallet 36
