ART.2001

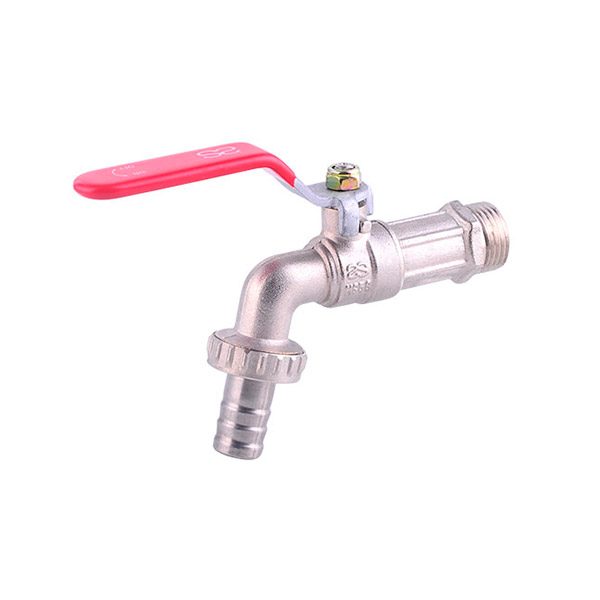

Product type:BRASS BALL BIBCOCK WITH HOSE UNION
Thread:M/M ISO228/1
Temperature:min -10°C max +100°C
Nominal pressure:Max 16bar
Available in:all sizes from 1/2″x3/4″ ,3/4″x1″

Description

NO Component Material
1 body brass
2 Seat PTFE
3 Ball Brass
4 Body end brass
5 o-ring NBR
6 Stem brass
7 handle Steel
8 Nut Steel
9 Ring brass
10 Rubber gasket NBR
11 water bifurcation Plastic
12 Hose union stainless steel
DN 1/2″x3/4″ 3/4″x1″
A 10 12
L 90 98
H 39 43
D 53 57
E 85 98
M 11 12.5
PN 16 16
Piece/box 14 8
Piece/carton 84 48
Carton/pallet 36 36
