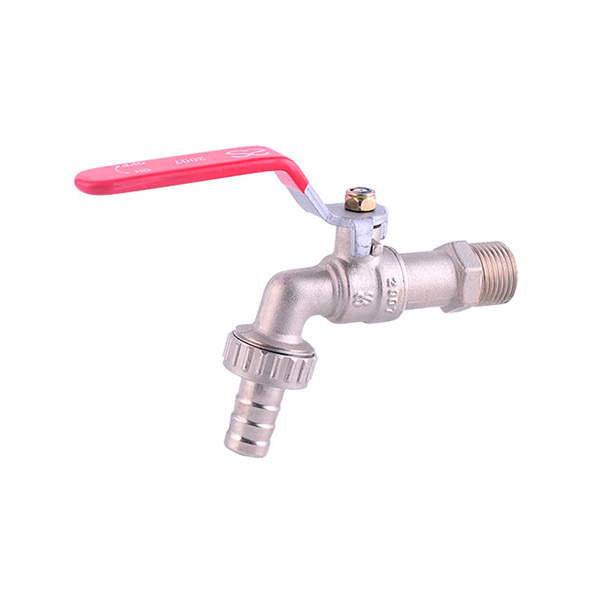

ART.2006A

Product type:BRASS BALL BIBCOCK WITH HOSE UNION
Thread:MM ISO228/1
Temperature:min -10°C max +100°C
Nominal pressure:Max 16bar
Available in:all sizes from 1/2″x3/4″ ,3/4″x1″

Description

NO Component Material
1 body brass
2 Seat PTFE
3 Ball Brass
4 Body end brass
5 Stem brass
6 O-ring NBR
7 handle Steel
8 Nut Steel
9 Ring brass
10 Rubber gasket NBR
11 water bifurcation Plastic
12 Hose union stainless steel
DN1xDN2 1/2″x3/4″ 3/4″x1″
A 10 12
L 91.5 103
H 43.8 44.8
D 57 61.8
E 85 98
M 15.5 15.5
PN 16 16
Piece/box 14 8
Piece/carton 84 48
Carton/pallet 36 36
