Products ART.2000

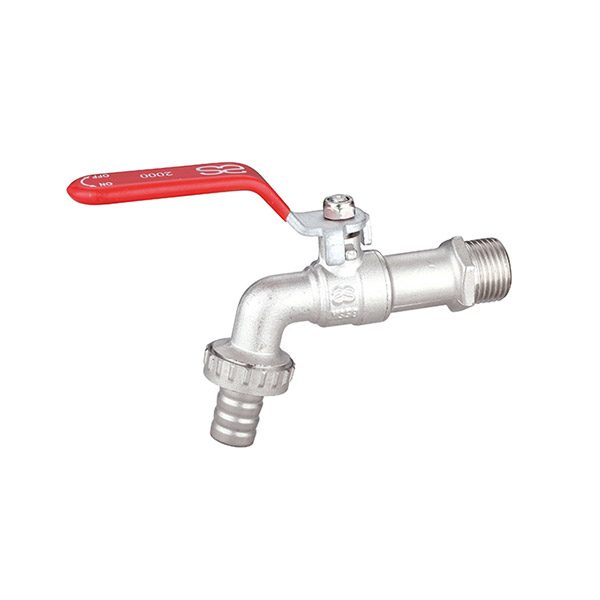

ART.2000

Product type：WITH HOSE UNION
Thread：MM ISO228/1
Temperature：min -10°C max +100°C
Nominal pressure：Max 16bar
Available in：all sizes from 1/2″x3/4″ ,3/4″x1″,1″x11/4″

Description

NO Component Material
1 body brass
2 Seat PTFE
3 Ball Brass
4 Body end brass
5 o-ring NBR
6 Stem brass
7 handle Steel
8 Nut Steel
9 Ring brass
10 Rubber gasket NBR
11 water bifurcation Plastic
12 Hose union stainless steel
DN 1/2″x3/4″ 3/4″x1″ 1″x11/4″
A 10 12 14.8
L 93 102 120
H 39 43 54
D 56 60 68
E 85 98 125
M 13 13 15
PN 16 16 16
Piece/box 14 8 5
Piece/carton 84 48 30
Carton/pallet 36 36 36
