Products Bibcock ART.2017

ART.2017

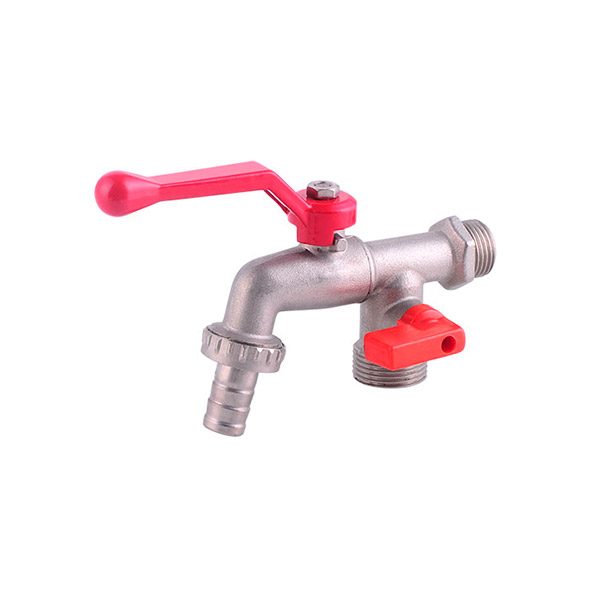

Product type：BRASS BALL BIBCOCK WITH HOSE UNION
Thread：MM ISO228/1
Temperature：min -10·C max +100·C
Nominal pressure：Max 16bar
Available in：all sizes from 1/2″x3/4″

Description

NO Component Material
1 body brass
2 Seat PTFE
3 Ball Brass
4 Body end brass
5 Stem brass
6 o-ring NBR
7 handle Aluminium
8 Nut brass
9 Ring brass
10 Rubber gasket NBR
11 water bifurcation Plastic
12 Hose union stainless steel
13 o-ring NBR
14 Ball brass
15 Press cap brass
16 Stem brass
17 o-ring NBR
18 Handle ABS
19 Screw Steel
DN1xDN2 1/2″x3/4″
A1/A2 10/10
B1/B2 65/22.7
C1/C2 41.5/39
D 102
E1/E2 84.5/22.7
M1/M2 11/12
PN 16
Piece/box 4
Piece/carton 24
