Products ART.1030-FF-T

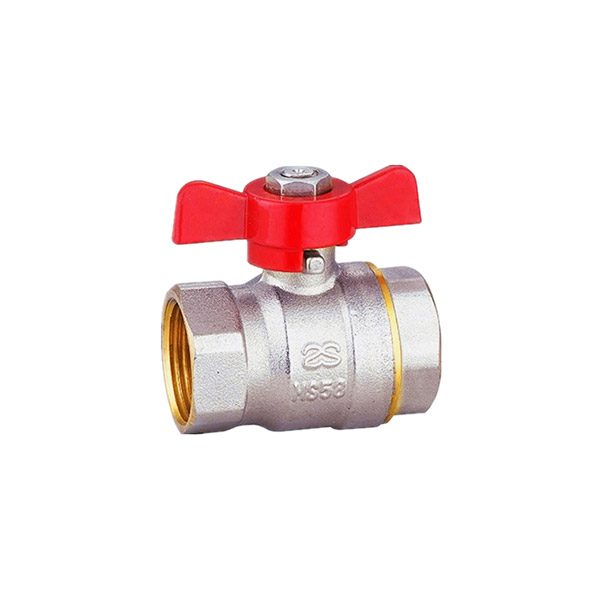

ART.1030-FF-T

Product type：BRASS BALL VALVE Full Bore
Thread：FF ISO228/1
Temperature：min -20°C max +95°C
Opening and closing tests：20.000
Nominal pressure：Max 25bar
Available in：all sizes from 1/4″ up to 1″

Description

NO Component Material
1 Body Brass
2 Seat P.T.F.E
3 Ball Brass
4 Valve nut Brass
5 Stem Brass
6 O-ring NBR 70°
7 Butterfly handle Aluminium
8 Nut Brass
DN 1/4″ 3/8″ 1/2″ 3/4″ 1″
A 9 10 14.8 19 24
L 40.3 41.3 48.5 54.6 64
H 32.7 32.7 36.5 40 52
E 54 54 54 54 70
M 8.5 8.5 10.5 11 13.5
PN 25 25 25 25 25
Piece/Box 28 28 16 12 6
Piece/carton 336 336 192 144 72
Carton/pallet 36 36 36 36 36
