Products ART.1030-FF-S

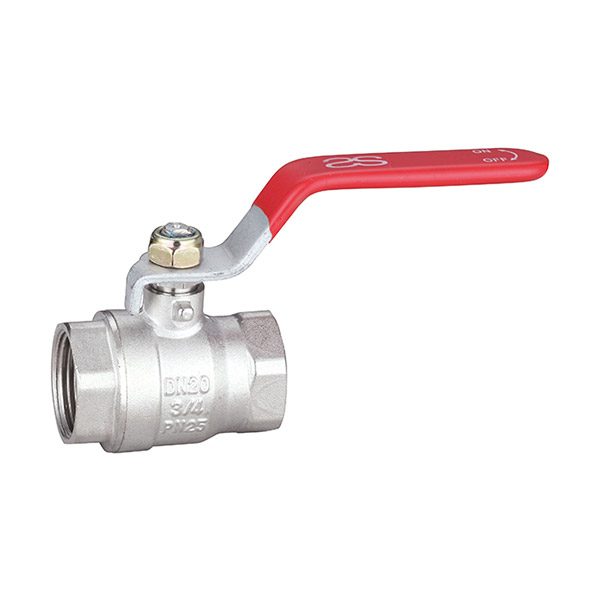

ART.1030-FF-S

Product type：BRASS BALL VALVE Full Bore
Thread：FF ISO228/1
Temperature：min -20°C max +95°C
Opening and closing tests：20.000
Nominal pressure：Max 25bar
Available in：all sizes from 1/4″ up to 4″

Description

NO Component Material
1 Valve nut Brass
2 Seat P.T.F.E
3 Ball Brass
4 Body Brass
5 Stem Brass
6 Down filling P.T.F.E
7 O-ring NBR 70°
8 Up-filling P.T.F.E
9 Press nut Brass
10 Nut Steel
11 Handle steel
DN 1/4″ 3/8″ 1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″ 21/2″ 3″ 4″
A 9 10 14.8 19 24 30.2 37 47 62 74 90
L 40.3 41.3 48.5 54.6 64 76 88 99 132 152.4 179
H 32.7 32.7 44 48 57.3 69 74.5 84.5 115.5 124 135.5
E 85 85 98 98 125 142 142 165 225 225 225
M 8.5 8.5 10.5 11 13.5 15 16.5 16.5 24 26.5 30
PN 25 25 25 25 25 25 25 25 25 25 25
Piece/Box 18 18 12 16 10 6 4 2 \ \ \
Piece/carton 216 216 144 96 60 36 24 12 4 4 2
Carton/pallet 36 36 36 36 36 36 36 36 60 53 60
