Description

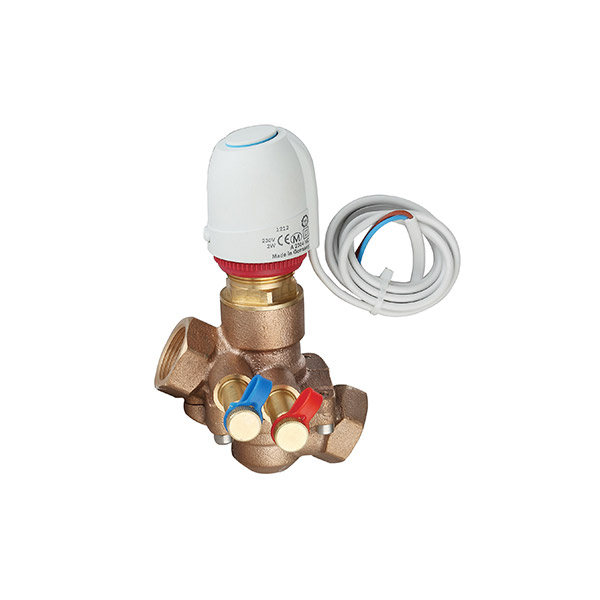

ART.2829
SAS dynamic balance electric two way valve is design for terminal heating entrance of air-condition and heating system . Adopted advanced controlling idea and model ,it can satisfy all requirement of whole system at any operating load .Under adjusting manual unit to reach required max flow rate at any operating load .By means of differential pressure control ,it can avoid interference to system terminal ,by means of electrical control ,it can be adjusted according to end user needed or external environment changing to satisfy system supplying .
| NO | Component | Material |
| 1 | Valve body | Bronze |
| 2 | Auto control following components | Components |
| 3 | Valve body | Bronze |
| 4 | O-ring | EPDM |
| 5 | Valve cap | Brass |
| 6 | Electric plug components | Components |
| 7 | Electric actuator | Components |
| 8 | Rubber seat | EPDM |
| 9 | Brass inserts | Brass |
| 10 | Brass nail | Stainless Steel |
| 11 | Connector | Brass |
| 12 | Hexagon bolts | Stainless Steel |
| DN | DN20 | DN25 |
| A | 94.3 | 102.2 |
| B | 12.5 | 15 |
| C | 137 | 141.5 |
| E | 97 | 98.5 |
| SW | 32 | 39 |
| Flow range(m³/h) | 0.25へ1.9 | 0.27へ2.8 |
| WT(g) | 980g | 1110g |
| Piece/Box | 1 | 1 |
| Piece/carton | 12 | 12 |
| Carton/pallet | 36 | 36 |
