Products Check valve ART.2705

ART.2705

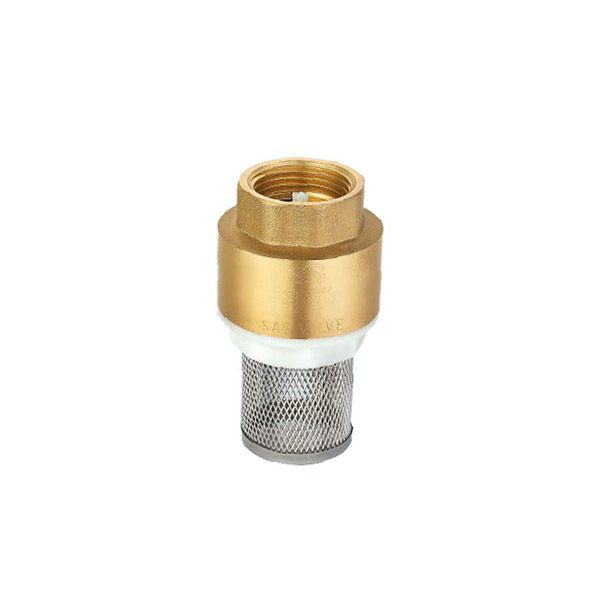

Product type：Brass UNIVERSAL CHECK VALVE
Thread：FF ISO228/1
Temperature：min 0·C max +80·C
Nominal pressure：Max 16bar
Available in：all sizes from 1/2″ up to 4″

Description

NO Component Material
1 body brass
2 Spring Stainless
3 Disc plastic
4 Gasket Rubber nbr
5 Body nut brass
6 Filter Stainless steel
DN 1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″ 21/2″ 3″ 4″
A 18 24 29 38 44 56 68 78 98
B 65 76 85 101 117 137 155 163 183
M1/M2 10.5 11 11.5 12.5 13 15 18.5 20 22
PN 16 16 16 16 16 16 16 16 16
Piece/box 36 18 12 8 3 2 1 1 \
Piece/carton 216 108 72 48 36 12 6 6 5
Carton/pallet 36 36 36 36 36 36 36 36 36
