Products Check valve ART.2700

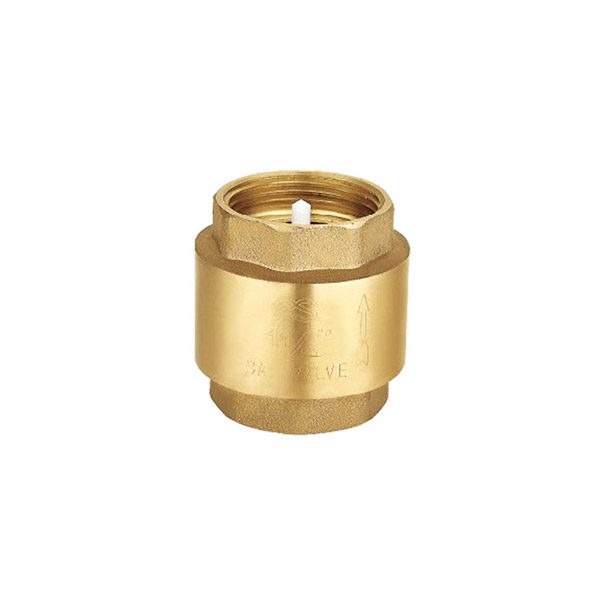

ART.2700

Thread：FF ISO228/1
Temperature：min 0·C max +80·C
Nominal pressure：Max 16bar
Available in：all sizes from 1/2″ up to 4″

Description

NO Component Material
1 body brass
2 Spring Stainless
3 Disc Plastic
4 Gasket Rubber nbr
5 Body nut brass
DN 1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″ 21/2″ 3″ 4″
A 17 23 28 38 43 55 68 78 100
B 45 49.5 55 61.5 68.5 75.5 93 97 100
M1/M2 10.5 11 11.5 13 13 15 19 20.5 20.5
PN 16 16 16 16 16 16 16 16 16
Piece/box 19 12 9 6 6 3 2 2 \
Piece/carton 228 144 108 72 36 18 12 12 6
Carton/pallet 36 36 36 36 36 36 36 36 36
