ART.2461

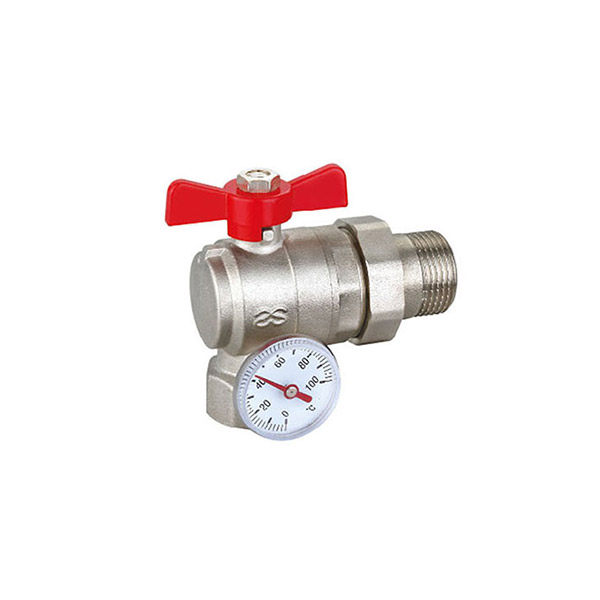

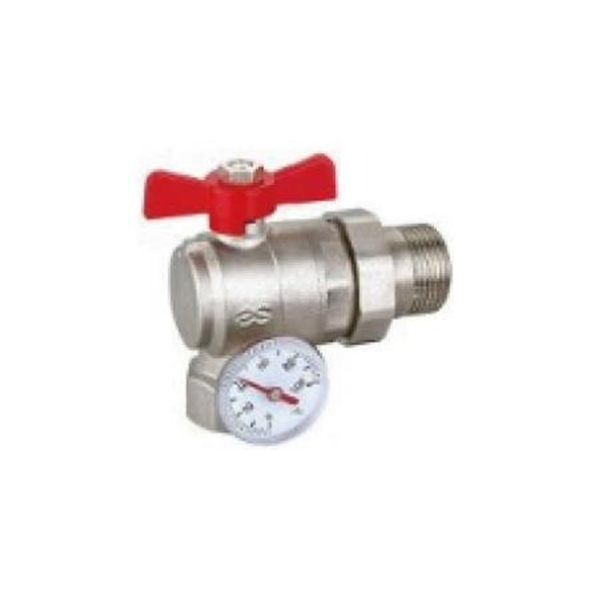

Product type:BRASS PIPE UNION BALL VALVE(ANGLE & with temperature)
Thread:FF ISO228/1
Temperature:min -20°C max +95°C
Opening and closing tests:20.000
Nominal pressure:max 10bar
Available in:1″

Description

NO Component Material
1 Body nut Brass
2 Seal ring P.T.F.E
3 Ball Brass
4 Body Brass
5 Stem Brass
6 O-ring NBR 70°
7 Butterfly handle Aluminium
8 Nut Brass
9 Rubber gasket NBR 75°
10 Ring Brass
11 Union Brass
12 Plug Brass
13 O-ring EPDM
14 Thermomter
DN 1″
A1/A2 24/25
B 79.5
C 45
E 70
M1/M2 15.5/15.5
F 42.5
G 40
PN 10
Piece/Box 1
Piece/carton 18
Carton/pallet 36
