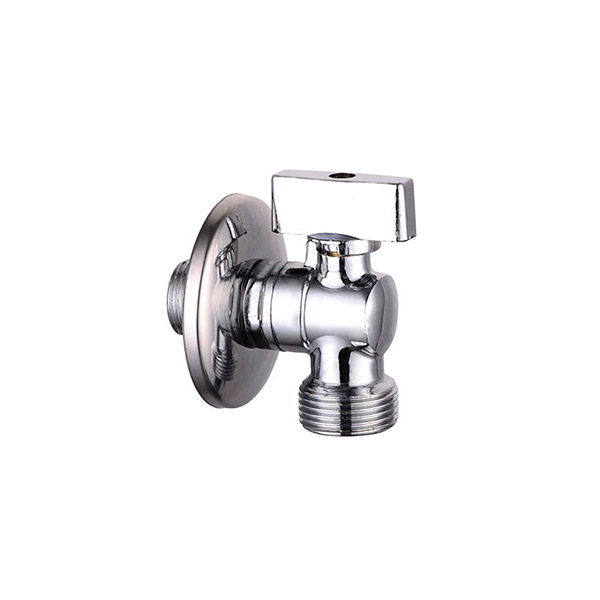

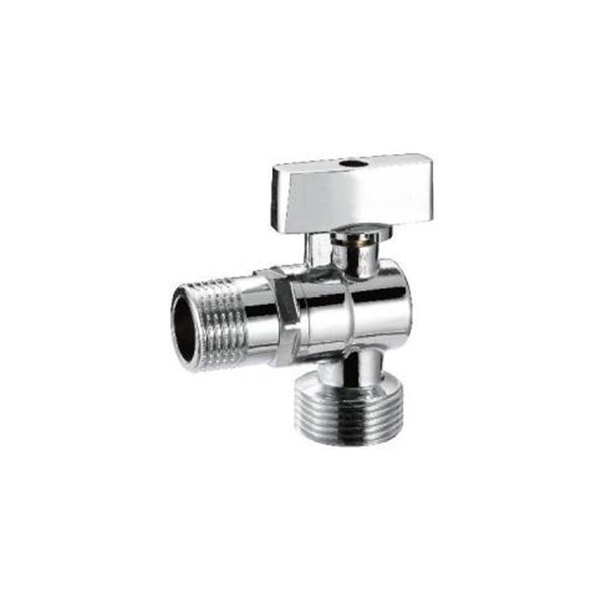

Products Angle valve ART.2450

ART.2450

Product type：BRASS ANGLE BALL VALVE Full Bore
Thread：M/M ISO228/1
Temperature：min 0°C max +80°C
Nominal pressure：max 10bar
Available in：from 1/2″x1/2″ to 1/2″x3/4″

Description

NO Component Material
1 Body Brass
2 Seat P.T.F.E
3 Ball Brass
4 O-ring NBR 70°
5 Stem Brass
6 Handle Plastic
7 Screw Brass
8 Accessory cover Stainless steel
9 Valve nut Brass
DN 1/2″x1/2″ 1/2″x3/4″
A 9.5 9.5
B 30.5 30.5
C 34.5 34.5
E 38.5 38.5
M1/M2 13/11.5 11.5
F 47 47
PN 10 10
Piece/Box 10 10
Piece/carton 60 60
Carton/pallet 36 36
