Products Angle valve ART.2443

ART.2443

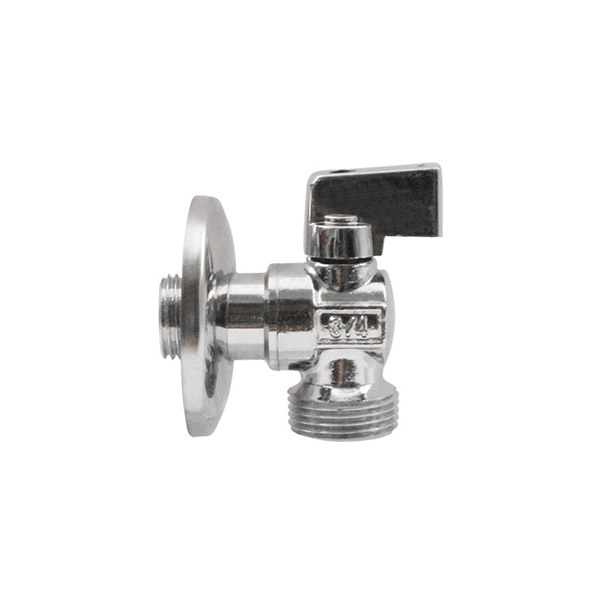

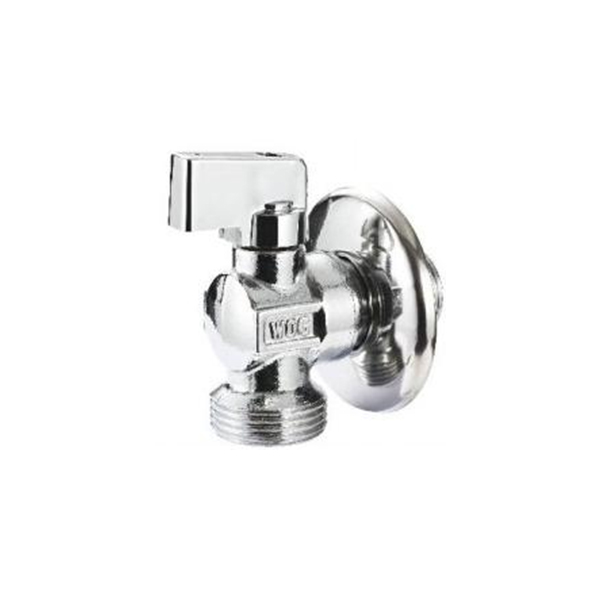

Product type：BRASS ANGLE BALL VALVE
Thread：M/M ISO228/1
Temperature：min 0°C max +80°C
Nominal pressure：max 10bar
Available in：1/2″x3/4″

Description

NO Component Material
1 Body Brass
2 Seat P.T.F.E
3 Ball Brass
4 O-ring NBR 70°
5 Stem Brass
6 Handle Plastic
7 Screw Brass
8 Valve nut Brass
9 Accessory cover Stainless steel
DN 1/2″x3/4″
A1/A2 10/9.5
B 26.5
C 35.7
E 23
M1/M2 13.5/8.5
F 41.5
PN 10
Piece/Box 10
Piece/carton 60
Carton/pallet 36
