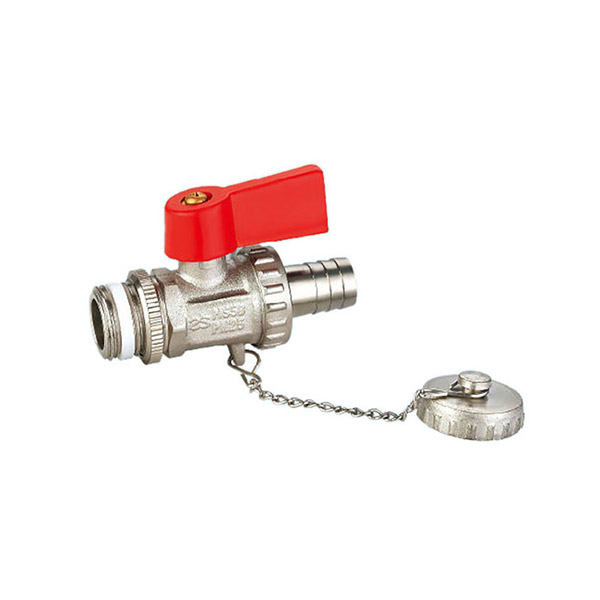

Products Ball Valve ART.2030

ART.2030

Product type：BRASS BOILER TANK FILLING AND EMPTYING
Thread：M/M ISO228/1
Temperature：min -10°C max +90°C
Nominal pressure：Max 16bar
Available in：from 3/8″ to 3/4″

Description

NO Component Material
1 Filling P.T.F.E
2 Brass gasket Brass
3 Ball Brass
4 Seat P.T.F.E
5 O-ring-gasket NBR
6 Chain Steel
7 Rubber gasket NBR
8 Cap Brass
9 Outlet Brass
10 Lock cap Brass
11 O-ring NBR
12 Stem Brass
13 Handle Aluminium
14 Screw Brass
15 Press gasket Brass
16 Body Brass
DN 3/8″ 1/2″
A 10 10
L 74 74
H 36 36
E 34 34
M 16.5 16.5
PN 16 16
Piece/Box 12 12
Piece/carton 144 144
Carton/pallet 36 36
