Description
ART.1706

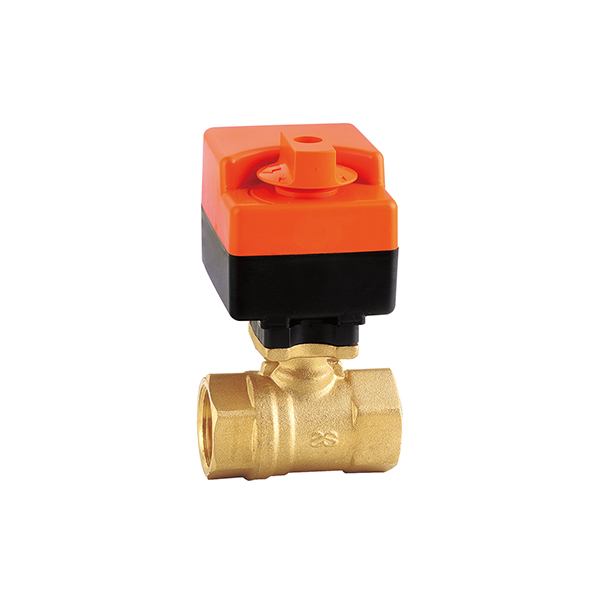

ELECTRICAL BALL VALVE
Components:temperature controller,electric motors brass valve Fuction:Control ending parts of cooling air condition Working principle:Temperature control over electril motors to make the valve open and closes,which realized medium exist in pipe flow or shut-off.together with strength of fan coil system,electrical valve will control temperature automatically
Threaded F/F ISO228
Electrial power source:AC24V,50-60HZ
Power:2W
Torques:2Nm
Nominal pressure:max 20bar
Travel time:40-50S
Medium:water
Available:3/4″-1″
| NO | Component | Material |
| 1 | Body | Brass |
| 2 | Seal ring | P.T.F.E/NBR |
| 3 | Ball | Brass |
| 4 | Body nut | Brass |
| 5 | Filling | P.T.F.E |
| 6 | O-ring | viton |
| 7 | Stem | Brass |
| 8 | electric actuator | |
| DN1xDN2 | 3/4″ | 1″ |
| A | 14 | 20 |
| B | 67 | 76 |
| C | 120 | 123 |
| E | 84 | 84 |
| M | 14 | 18 |
| PN | 20 | 20 |
| Piece/Box | ／ | ／ |
| Piece/carton | 8 | 8 |
| Carton/pallet | 36 | 36 |
