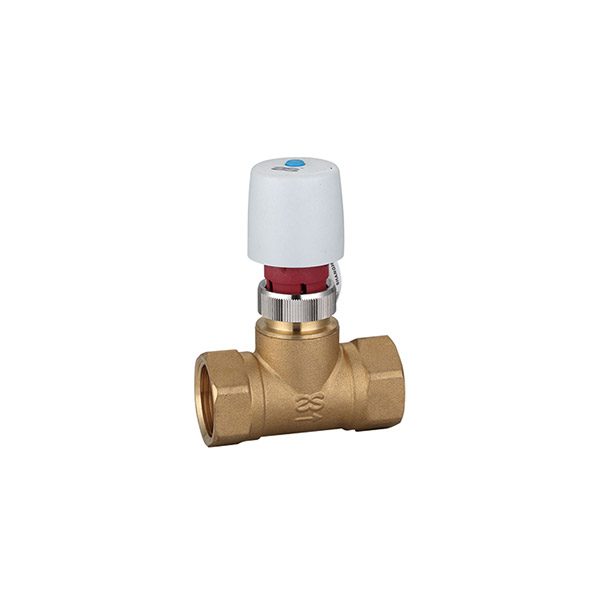

Description
| NO | Component | Material |
| 1 | Spinale | Stainless steel |
| 2 | Press cap | Brass |
| 3 | O-ring | Epdm 70° |
| 4 | Gasket | PA66 |
| 5 | Gasket | Stainless steel |
| 6 | O-ring | Epdm 70° |
| 7 | Spring | Stainless steel |
| 8 | Body nut | Brass |
| 9 | Gasket | Stainless steel |
| 10 | O-ring | Epdm 70° |
| 11 | O-ring | Epdm 70° |
| 12 | Diaphragm | Epdm 80° |
| 13 | Body | Brass |
| 14 | Electrial acuator | |
| DN | 3/4″ | 3/4″(A) | 1″ | 11/4″ |
| A | 14 | 15 | 18 | 19 |
| B | 69.5 | 69.5 | 84 | 84 |
| C | 91 | 101 | 101 | 101 |
| E | 41 | 41 | 41 | 41 |
| M | 13 | 13 | 17 | 17 |
| PN | 16 | 16 | 16 | 16 |
| Piece/Box | 7 | 7 | 5 | 4 |
| Piece/carton | 42 | 42 | 30 | 24 |
| Carton/pallet | 36 | 36 | 36 | 36 |
