Products Ball Valve ART.1512

ART.1512

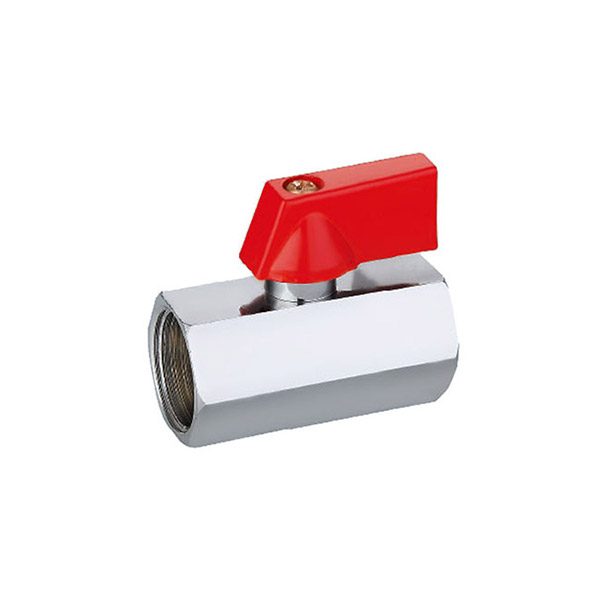

Product type：BRASS MINI BALL VALVE
Thread：FF ISO228/1
Temperature：min -10·C max +120·C
Nominal pressure：Max 25bar
Available in：all sizes from 1/4″ up tp 3/4″

Description

NO Component Material
1 body brass
2 ring brass
3 seal ring P.T.F.E
4 ball brass
5 O-ring NBR
6 Stem brass
7 handle aluminium
8 screw brass
DN 1/4″ 3/8″ 1/2″ 3/4″
A 8 8 10 13.5
L 41.5 41.5 45.5 49.5
H 27.5 27.5 29 32
E 23 23 23 23
M 9 9 10.5 11
PN 25 25 25 25
Piece/Box 32 32 24 12
Piece/carton 384 384 288 144
Carton/pallet 36 36 36 36
