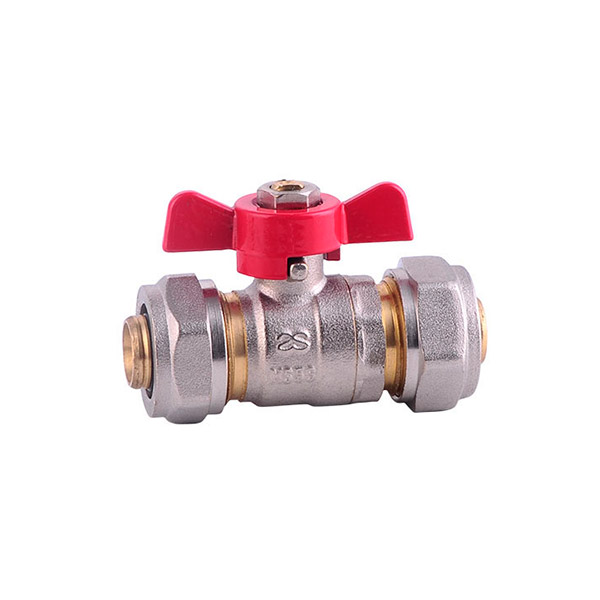

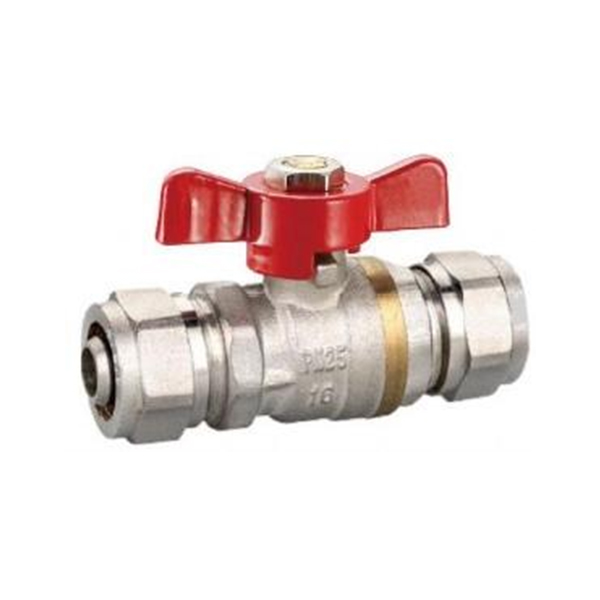

ART.1386A

Product type:ALUMINIUM PIPE BALL VALVE
Thread:F ISO228/1
Temperature:min -20°C max +95°C
Opening and closing tests:20.000
Nominal pressure:Max 25bar
Available in:1/2Fx16 3/4Fx20

Description



NO Component Material
1 Body Brass
2 Seat PTFE
3 Ball Brass
4 Body nut Brass
5 Stem Brass
6 O-ring NBR
7 Butterfly handle Aluminium
8 Nut Brass
9 Gasket PTFE
10 O-ring NBR
11 Ring Brass
12 Bushing Brass
DN 1/2″ 3/4″
A 10 14
L 53 61.4
H 31.8 35
E 54 54
PN 25 25
Piece/Box 14 10
Piece/carton 168 120
Carton/pallet 36 36
