Products Ball Valve ART.1355

ART.1355

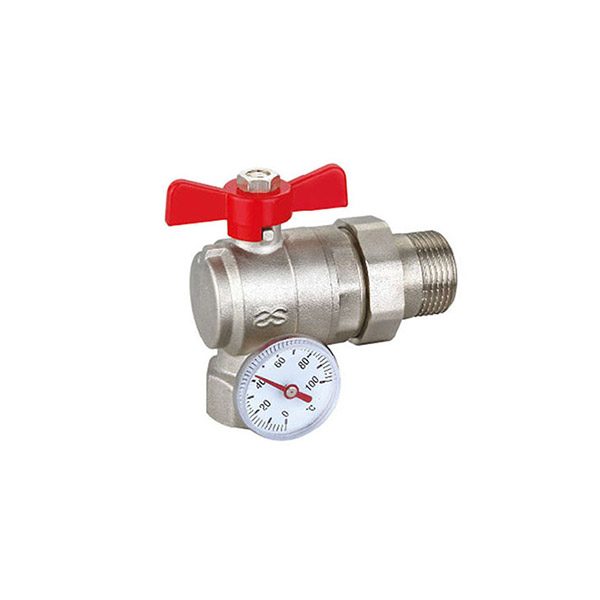

Product type：BRASS PIPE UNION BALL VALVE(with temperature)
Thread：F/M ISO228/1
Temperature：min -20°C max +95°C
Nominal pressure：max 10bar
Available in：1″

Description

NO Component Material
1 Valve nut Brass
2 Seal ring P.T.F.E
3 Ball Brass
4 Body Brass
5 Ring Brass
6 Gasket NBR
7 Union Brass
8 Stem Brass
9 O-ring NBR 70°
10 Butterfly handle Aluminium
11 Nut Brass
12 Plug Brass
13 O-ring EPDM 70°
14 Thermomter
DN 1″
A 24
L 90.5
H 45
E 70
F 59
G 40
M1/M2 14.5/16
PN 10
Piece/Box 1
Piece/carton 48
Carton/pallet 24
