Products Ball Valve ART.1350TR

ART.1350TR

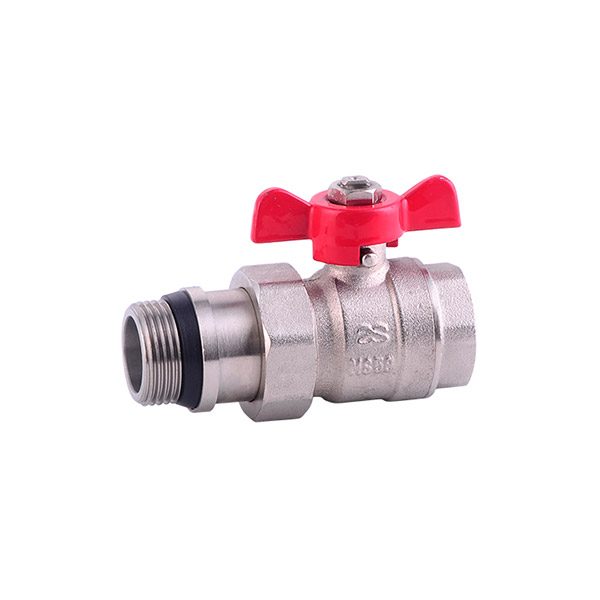

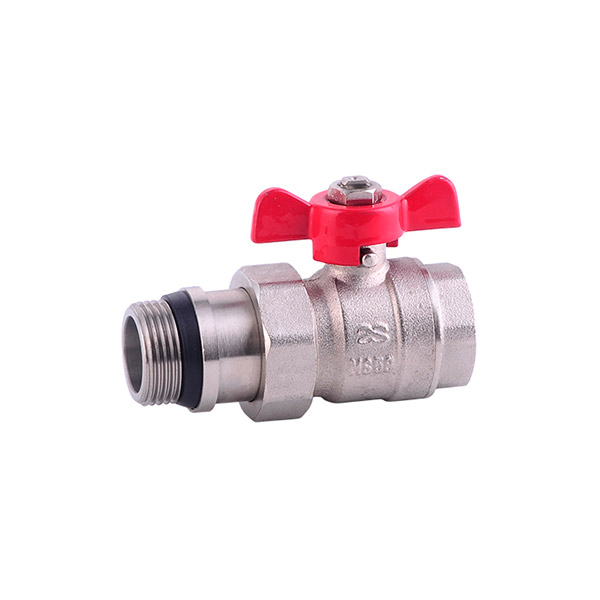

Product type：BRASS PIPE UNION BALL VALVE Full Bore
Thread：F/M ISO228/1
Temperature：min -20°C max +95°C
Opening and closing tests：20.000
Nominal pressure：Max 25bar
Available in：all sizes from 1/2″ up to 1″

Description

NO Component Material
1 Body Brass
2 Seat P.T.F.E
3 Ball Brass
4 Body nut Brass
5 Stem Brass
6 O-ring NBR
7 Butterfly handle Aluminium
8 Nut Brass
9 Ring Brass
10 O-ring Brass
11 Union Brass
12 Metal ring Brass
13 Gasket NBR
DN 1/2″ 3/4″ 1″
A 14.8 19 24
L 69.5 84.5 93
H 36.5 39.5 47
E 54 54 70
M1/M2 11/7.3 12/10 13/10
PN 25 25 25
Piece/Box 18 12 8
Piece/carton 108 72 12
Carton/pallet 36 36 36
