Products Distribution Manifold Accessories ART.2663

ART.2663

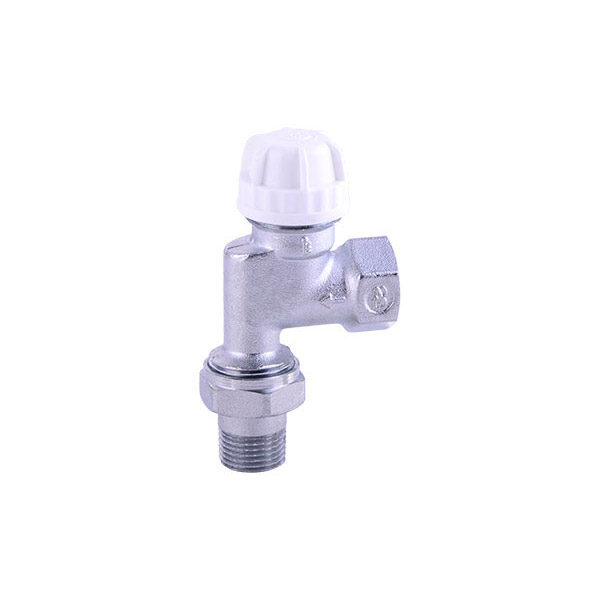

Product type：THERMOSTATIC RADIATOR VALVE(ANGLE)
Thread：ISO7/1
Temperature：min 0℃ max+90℃
Nominal pressure：max 10bar
Available in：1/2″x1/2″
Medium：water
Temperature controlled rage：6°C -28°C

Description

NO Component Material
1 Spinale Stainless steel
2 Press cap Brass
3 O-ring Epdm 70°
4 Gasket PA66
5 Snap ring Stainless steel
6 O-ring Epdm 70°
7 Spring Stainless steel
8 Body nut Brass
9 Gasket Stainless steel
10 O-ring Epdm 70°
11 O-ring Epdm 70°
12 Diaphragm Epdm 80°
13 Body Brass
14 Handle wheel POM
15 Ring Brass
16 Union Brass
DN1/DN2 1/2″
A 9
L 43
H 49
E 34
D 55
M1/M2 12/12
PN 10
Piece/Box 9
Piece/carton 54
Carton/pallet 36
