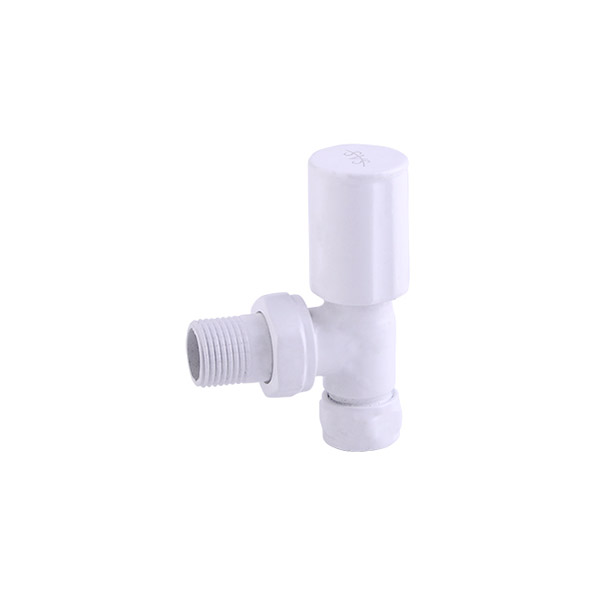

Products Radiator valve ART.2657FKP

ART.2657FKP

Product type：BRASS ANGLE VALVE FOR HOT WATER
Thread：F/M ISO228/1/ISO7-1
Temperature：min 0℃ max+90℃
Nominal pressure：max 10bar
Available in：1/2″x16x2

Description

NO Component Material
1 Body Brass
2 Cartridge for vavle Brass
3 O-ring EPDM
4 Packing nut Brass
5 O-ring EPDM
6 Gasket EPDM
7 Press cap Brass
8 Ring Brass
9 Union Brass
10 Stem Brass
11 O-ring EPDM
12 Clip Stainless steel
13 Handle Brass
14 Cover Brass
15 Ring Brass
16 Bushing Brass
17 O-ring EPDM
18 Gasket ABS
DN1xDN2 R1/2″x16x2
A 12
L 52
H 91
E 29.5
M1 13.5
PN 10
Piece/box 15
Piece/carton 90
Carton/pallet 36
