Description
| NO | Component | Material |
| 1 | Union | Brass |
| 2 | Ring | Brass |
| 3 | Body | Brass |
| 4 | Cartridge for vavle | Brass |
| 5 | Packing nut | Brass |
| 6 | O-ring | EPDM |
| 7 | O-ring | EPDM |
| 8 | Gland | Brass |
| 9 | Rubber gasket | NBR |
|
|||||||||||||||||||||||||||||||
0086-576-8748777
ART.2637

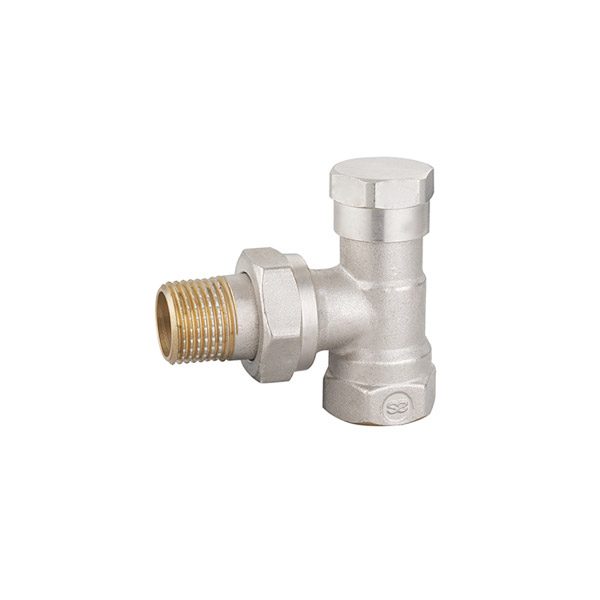

Product type：BRASS ANGLE VALVE FOR HOT WATER
Thread：F/M ISO228/1/ISO7-1
Temperature：min 0℃ max+90℃
Nominal pressure：max 10bar
Available in：from 3/8″up to 1/2″
