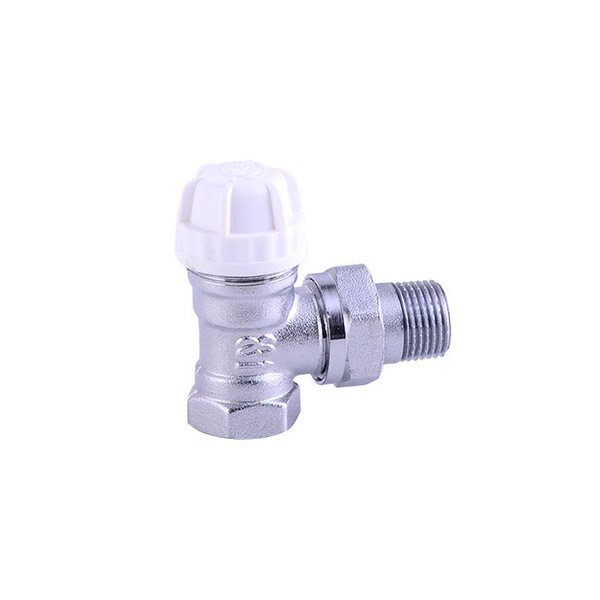

Products Radiator valve ART.2612

ART.2612

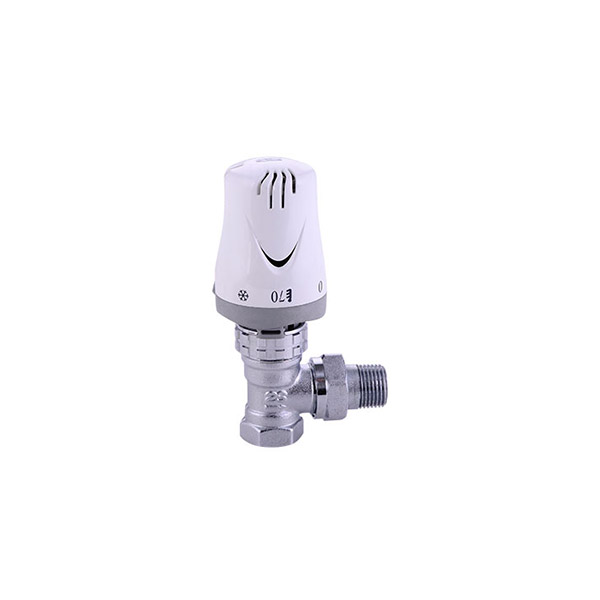

Product type：THERMOSTATIC RADIATOR VALVE(ANGLE)
Thread：ISO7/1
Temperature：min 0℃ max+90℃
Nominal pressure：max 10bar
Available in：from 1/2″x1/2″ up to 3/4″x3/4″
Medium：water
Temperature controlled rage：6°C -28°C

Description

NO Component Material
1 Spinale Stainless steel
2 Press cap Brass
3 O-ring Epdm 70°
4 Gasket PA66
5 Snap ring Stainless steel
6 O-ring Epdm 70°
7 Spring Stainless steel
8 Body nut Brass
9 Gasket Stainless steel
10 O-ring Epdm 70°
11 O-ring Epdm 70°
12 Diaphragm Epdm 80°
13 Body Brass
14 Handle wheel ABS
15 Ring Brass
16 Union Brass
DN1/DN2 1/2″ 3/4″
A 9 14
L 52.5 81.5
H 46 46.5
D 23 26
E 34 34
M1/M2 12.5/12 13/16.5
PN 10 10
Piece/Box 12 9
Piece/carton 72 54
Carton/pallet 36 36
