Products Distribution Manifold Accessories ART.2605JR
🔍

ART.2605JR

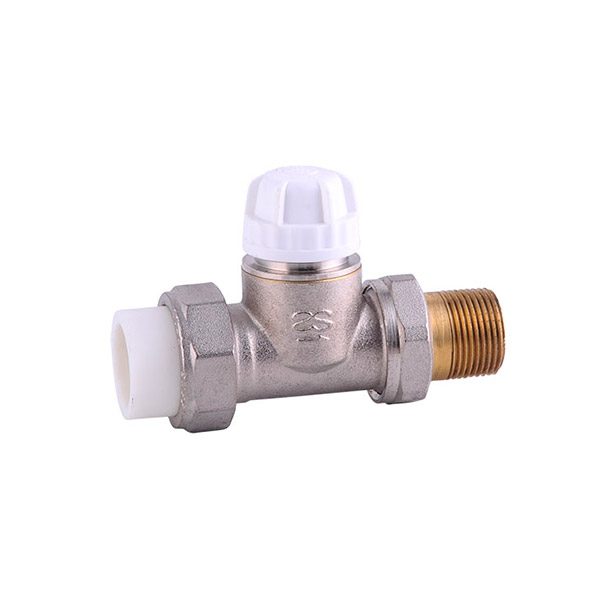

Product type：THERMOSTATIC RADIATOR VALVE(STRAIGHT)
Temperature：min 0℃ max+90℃
Nominal pressure：max 10bar
Available in：from 1/2″x20″ up to 3/4″x25″
Temperature controlled rage：6°C -28°C

Description

NO Component Material
1 Spinale Stainless steel
2 Press cap Brass
3 O-ring Epdm 70°
4 Gasket PA66
5 Snap ring Stainless steel
6 O-ring Epdm 70°
7 Spring Stainless steel
8 Body nut Brass
9 Gasket Stainless steel
10 O-ring Epdm 70°
11 O-ring Epdm 70°
12 Diaphragm Epdm 80°
13 Body Brass
14 Handle wheel ABS
15 Ring Brass
16 O-ring Epdm 70°
17 Union Brass
18 O-ring Epdm 70°
19 Ring Brass
20 Union PPR
DN1/DN2 1/2″x20 3/4″x25
A 15 15
L 109 112
H 54.5 54.5
E 34 34
M1/M2 12/16 16.5/17
PN 10 10
Piece/Box 5 5
Piece/carton 30 30
Carton/pallet 36 36
