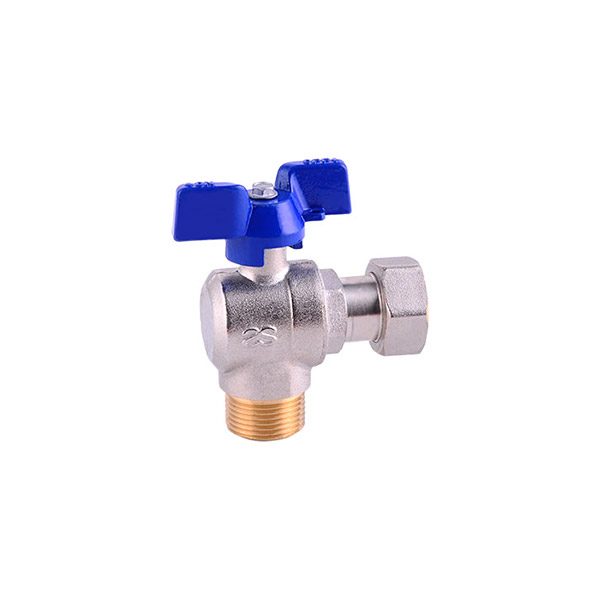

Products Ball Valve ART.2469-MF

ART.2469-MF

Product type：BRASS BALL VALVE
Thread：MF ISO228/1
Temperature：min -20°C max +95°C
Nominal pressure：max 10bar
Available in：1/2″ 3/4″

Description

NO Component Material
1 Body Brass
2 Seat P.T.F.E
3 Ball Brass
4 Body nut Brass
5 Stem Brass
6 O-ring NBR
7 Butterfly handle Aluminium
8 Screw Steel
9 Ring Brass
10 Gasket NBR
11 Union Brass
12 O-ring NBR
DN 1/2″ 3/4″
A1/A2 15/14 19/16
B 36 39
C 44.5 48
D 43 45.5
E 60 60
M1/M2 13/6 15/8.5
PN 16 16
Piece/Box 8 10
Piece/carton 96 60
Carton/pallet 36 36
