Description
| NO | Component | Material |
| 1 | Body nut | Brass |
| 2 | Seal ring | NBR |
| 3 | Ball | Brass |
| 4 | Body | Brass |
| 5 | O-ring | NBR 70° |
| 6 | Ring | Brass |
| 7 | Outlet | Brass |
| 8 | Stem | Brass |
| 9 | O-ring | NBR 70° |
| 10 | Handle | Aluminium |
| 11 | Screw | Brass |
| 12 | Ring | Brass |
| 13 | Rubber gasket | EPDM |
|
|||||||||||||||||||||||||||||||
0086-576-8748777

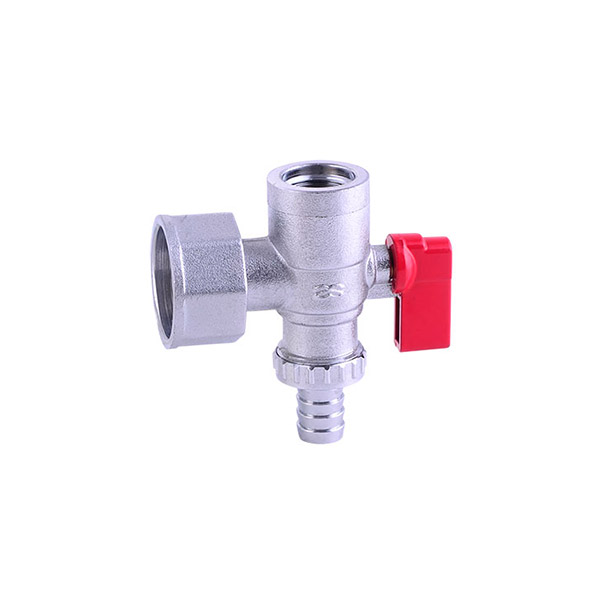

ART.2041A
Product type：END FITTING CONSISTING OF 3-WAY END FITTING AND FITTING AND DRAIN COCK
Temperature：min -10·C max +95·C
Nominal pressure：max 10bar
Available in：1/2″x1″
