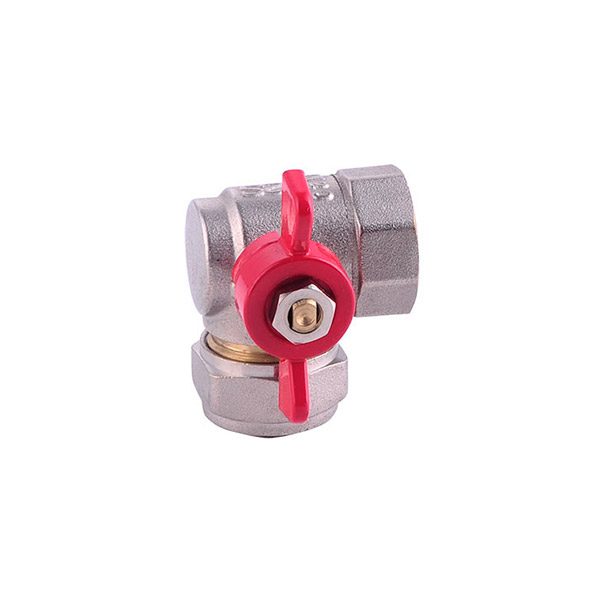

ART.1367-left

Product type:ALUMINIUM PIPE BALL VALVE
Thread:F ISO228/1
Temperature:min -20°C max +95°C
Opening and closing tests:20.000
Nominal pressure:Max 25bar
Available in:1/2Fx16 3/4Fx20

Description

NO Component Material
1 Body Brass
2 Seat PTFE
3 Ball Brass
4 Body nut Brass
5 Stem Brass
6 O-ring NBR
7 Butterfly handle Aluminium
8 Nut Brass
9 Gasket PTFE
10 O-ring NBR
11 Bushing Brass
12 Ring Brass
DN1xDN2 1/2″ 3/4″Fx20
A 12.5 14.5
B 24 28.5
C 34.5 35.5
D 34 39.5
E 54 54
M 11 11
PN 25 25
Piece/Box 8 7
Piece/carton 96 84
Carton/pallet 36 36
