Products Ball Valve ART.1365TR

ART.1365TR

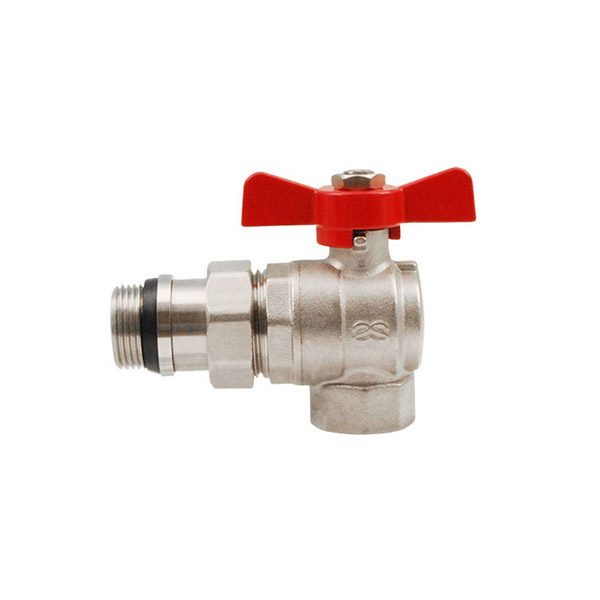

Product type：BRASS ANGLE BALL VALVE
Thread：FF ISO228/1
Temperature：min -20°C max +95°C
Opening and closing tests：20.000
Nominal pressure：max 40bar
Available in：all sizes from 1/2″x1/2″ up to 1″x1″

Description

NO Component Material
1 Body Brass
2 Body nut Brass
3 Seat Brass
4 Ball Brass
5 Down filling P.T.F.E
6 O-ring NBR
7 Stem Brass
8 Up filling P.T.F.E
9 Press cap Brass
10 Butterfly handle Aluminium
11 Nut Brass
12 Ring Brass
13 Gasket NBR
14 Union Brass
15 Gasket Brass
16 Gasket NBR
DN 1/2″x1/2″ 3/4″x3/4″ 1″x1″
A1/A2 15/14 20/19 25/24
B 58.7 74 81
C 27 31.5 38.5
E 54 70 70
H 39 45.5 49
M1/M2 7.3/11.5 10/12.5 10/14.5
PN 40 40 40
Piece/Box 10 8 5
Piece/carton 120 48 30
Carton/pallet 36 36 36
