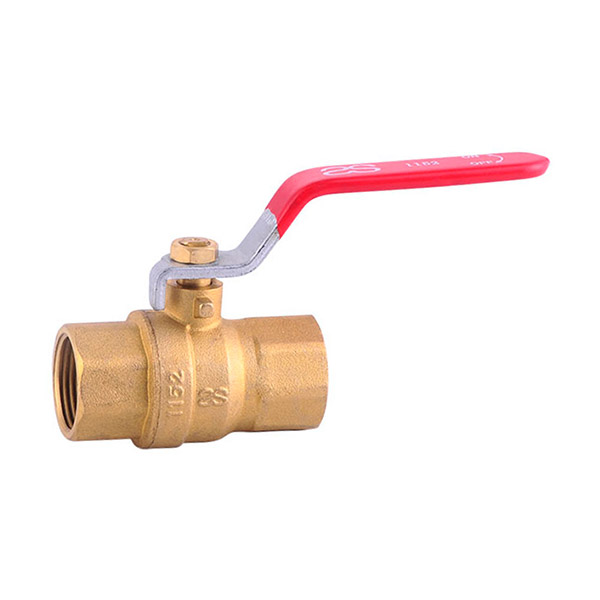

ART.1152-FFS

Product type:Full Bore
Thread:MF ISO7-1(Rp/R)
Temperature:min -20°C max +95°C
Opening and closing tests:20.000
Nominal pressure:Max 16bar
Available in:all sizes from 1/2″ up to 2″

Description

NO Component Material
1 Body Brass
2 Seat P.T.F.E
3 Ball Brass
4 Valve nut Brass
5 Stem Brass
6 O-ring NBR 70°
7 Handle Steel
8 Nut Steel
DN 1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″
A 14.5 19 25 32 40 49
L 60 68.5 82 96 103.5 125.5
H 48 51 62 71 81.5 90
E 98 98 125 125 142 165
M 16 18 20.5 23 23 27.5
PN 16 16 16 16 16 16
Piece/Box 8 14 8 4 3 2
Piece/carton 96 84 48 24 18 8
Carton/pallet 36 36 36 36 36 36
