Products Ball Valve ART.1034-FF-S

ART.1034-FF-S

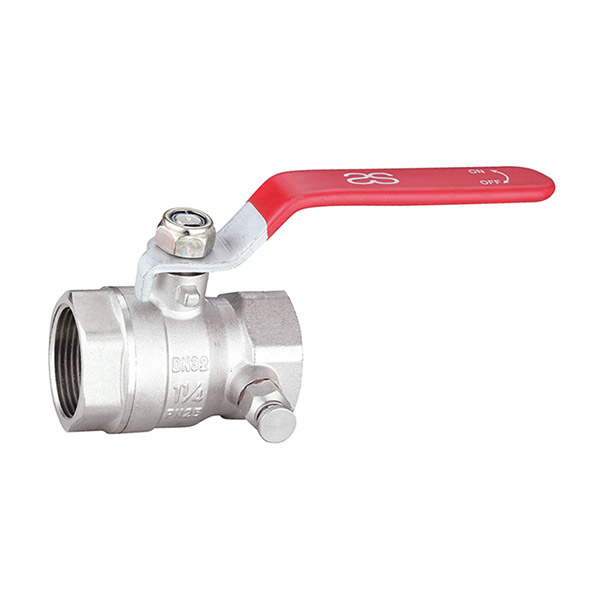

Product type：BRASS BALL VALVE WITH DRAIN OFF-COCK Full Bore
Thread：FF ISO228/1
Temperature：min -20°C max +95°C
Opening and closing tests：20.000
Nominal pressure：Max 25bar
Available in：all sizes from 1/2″ up to 2″

Description

NO Component Material
1 Body Brass
2 Seat P.T.F.E
3 Ball Brass
4 Body Brass
5 Down filling P.T.F.E
6 O-ring NBR 70°
7 Up-filling P.T.F.E
8 Press nut Brass
9 Stem Brass
10 Nut Steel
11 Handle steel
12 Nozzle core Brass
13 Nozzle body Brass
14 Nozzle nob Brass
15 O-ring NBR 70°
16 O-ring NBR 70°
17 Hard-paper gasket Fibre
18 Nut for nozzle Brass
DN 1/2″ 3/4″ 1″ 11/4″ 11/2″ 2″
A 14.8 19 24 30.2 37 47
L 55.5 60.8 79.5 82 92 104.5
H 44 48 57.3 69 74.5 84.5
E 98 98 125 142 142 165
M1/M2 10.5/11.5 11/11.5 13 15 15.5/16.5 16
F 103 110 115 123 128 140
PN 25 25 25 25 25 25
Piece/Box 15 5 6 4 3 2
Piece/carton 90 60 42 24 18 12
Carton/pallet 36 36 36 36 36 36
